Product manual ：

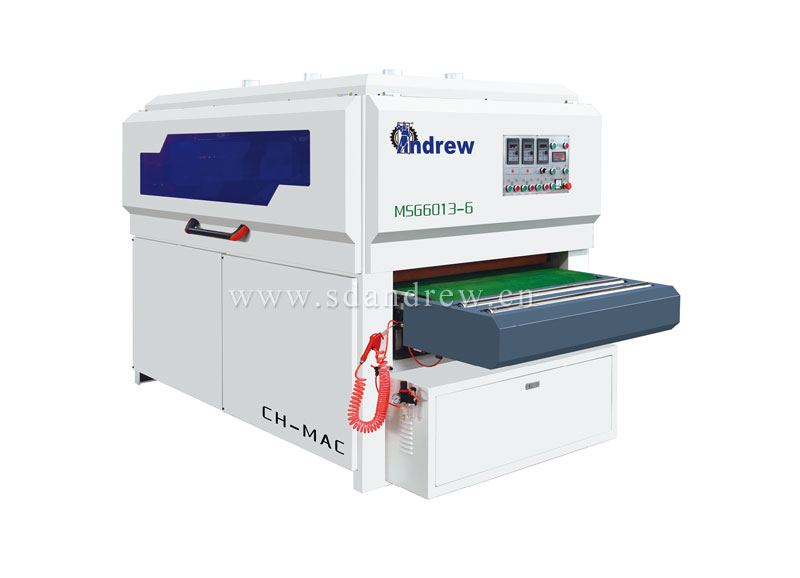

The product is suitable for the surface polishing of the modelling surface of the board such as indoor door, cabinet door, furniture, solid board, integrated board, joinery board, particleboard, compound floor, plywood, including the surface treatment of the plain board, coloring board and primer.
Equipped with fault display, easy maintenance, in case of sudden power cut conveyor bed will automatically decline, to protect the equipment and workpiece efficiency.
Product parameter ：
| Maximum processing width | 300-1300mm |
| Working Thickness | 10-110mm |
| Total Motor Power | 13kw |
| Main Motor Power | 2.2kw |
| Oscillating motor power | 0.55kw |
| Swing speed | 50-330r/min |
| Transmission motor power |
1.5kw |
| Feeding Speed | 2.5-12.5m/min |
| Working Air Pressure | 0.6-0.8mpa |
| Vacuuming the wind speed | 8200m3/h |
| OveralIl Dimensions | 3600*2200*1900mm |
| Net Weight | 2000kg |
