Product manual ：

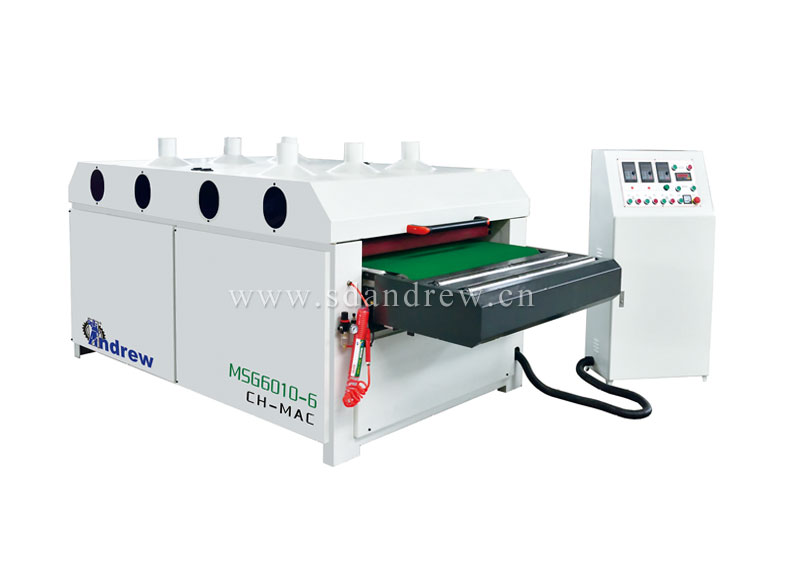

This product is suitable for the polishing of corrugated materials such as door frame, window frame. cabinet door and frame with concave and convex surface.
Suitable for drawing and polishing of hardwood, softwood, medium density plywood and sandwich plate.

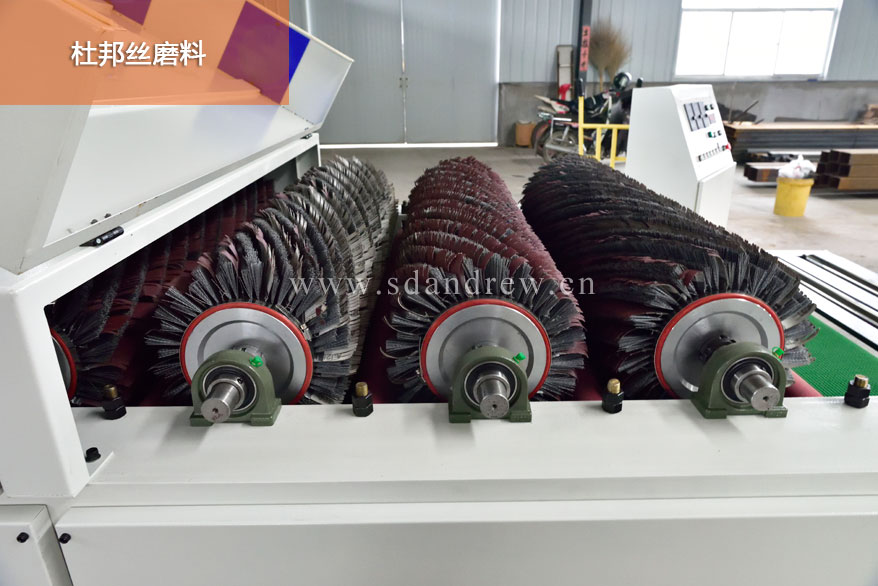

The imported frequency converter controls the speed of polishing wheel, and the conveyor belt stepless speed regdation.
Product parameter ：
| Maximum processing width | 30-1000mm |
| Working Thickness | 3-110mm |
| Total Motor Power | 14.67kw |
| Screw Roller Motor Power | 2.2kw |
| Feed motor power | 1.1kw |
| Feed speed | 6-24m/min |
| Working Air Pressure | 0.6-0.8mpa |
| OveralIl Dimensions | 2100*1600*1500mm |
| Net Weight | 1000kg |
